Engineering Insights: Nissan TD27 Series Engine Guide & The 20mm vs. 24mm Cylinder Head Selection

In the world of commercial vehicles and rugged off-roaders, the Nissan TD27 series is synonymous with “bulletproof” reliability. This 2.7-liter inline-four diesel engine is famous for its gear-driven timing mechanism, which eliminates the catastrophic risks associated with timing belt or chain failures. However, during engine overhauls or performance upgrades, technicians often face a critical “trap”: choosing between the 20mm and 24mm cylinder head specifications.

This guide breaks down the engineering logic of the TD27 series and explains why the combustion chamber depth is the most important measurement in your build.

I. TD27 vs. TD27T: More Than Just a Turbocharger

While the “T” stands for Turbo, the differences between these two powerplants go far beyond a bolt-on kit. The engineering is fundamentally tuned for different thermal and mechanical loads.

1. Core Performance Specs

2. Internal Reinforcements

To handle the increased peak cylinder pressures and thermal loads of a turbo system, the TD27T features several heavy-duty upgrades. Piston pins are often larger in diameter, and the pistons themselves undergo specialized heat treatment. Most notably, the TD27T block includes oil cooling nozzles that spray oil directly onto the underside of the piston crown to manage the heat generated in the combustion zone.

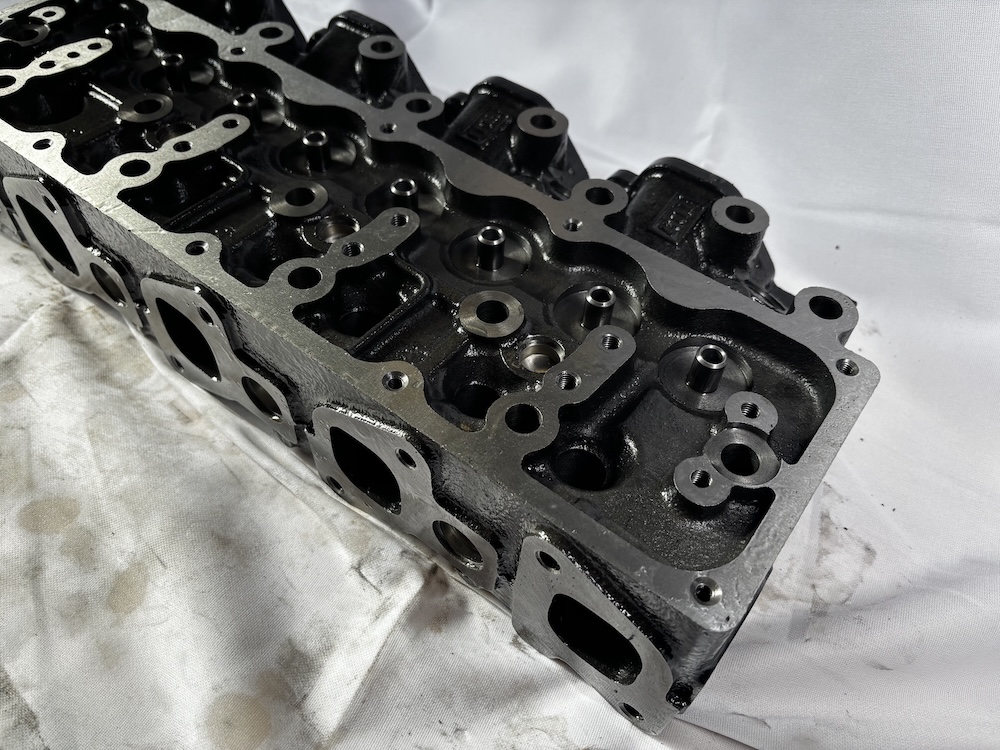

II. The 20mm vs. 24mm Cylinder Head: Engineering Logic

In the aftermarket, TD27 cylinder heads are categorized by “20mm” or “24mm.” This does NOT refer to valve size or port diameter; it refers to the Combustion Chamber Depth (or recess depth).

1. The Function of the Depth Difference

This design is a precise method for regulating the Compression Ratio:

• 20mm Head (Shallow Chamber): Paired with standard pistons, this head is used for the naturally aspirated TD27. The shallow recess ensures a high compression ratio (21.9:1) necessary for efficient compression ignition without forced induction.
• 24mm Head (Deep Chamber): Designed for the TD27T and TD27Ti. The additional 4mm of depth increases the clearance volume, dropping the compression ratio to approximately 20.1:1. This lower ratio allows the engine to handle the high-pressure air forced in by the turbocharger without excessive peak pressure or “knocking.”

III. Mismatch Catastrophes: Why You Cannot Interchange Them

Installing the wrong cylinder head relative to your piston type will lead to immediate or long-term engine failure.

• Scenario A: 20mm Head on a Turbo (24mm) Block. By reducing the combustion space, the actual compression ratio will spike to dangerous levels (likely exceeding 24:1). The most immediate risk is mechanical interference, where the valves strike the piston. If it does run, the extreme pressure will blow the head gasket instantly, and the thermal load can melt the piston crowns within minutes.
• Scenario B: 24mm Head on an NA (20mm) Block. This creates an oversized combustion space, causing the compression ratio to drop significantly. The result is insufficient heat generated during the compression stroke. You will encounter severe cold-start issues, excessive white smoke (unburnt fuel), and a loss of torque exceeding 30%.

IV. Professional Conclusion and Procurement Advice

The Nissan TD27 cylinder head is a precision-engineered component where a 4mm difference dictates the life or death of the engine.

1. Measure Twice, Order Once: Never rely solely on the vehicle’s year or model. Always measure the depth of the old head before ordering a replacement.
2. Verify Piston Part Numbers: If the engine has been previously rebuilt with non-OEM pistons, you must verify the piston crown height before selecting the head.
3. Inspect Pre-Chambers: Regardless of the version, ensure the pre-combustion chambers are seated tightly and are free of heat cracks.

This technical guide is authored by engineering specialists, dedicated to providing professional insights for the global construction machinery and automotive repair industries. If you are sourcing high-quality Nissan TD27 series cylinder heads—available in a complete range of both Cast Iron and Aluminum Alloy specifications—please consult our technical support team for expert assistance.
