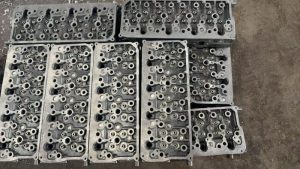

However, fleet operators and repair shops worldwide face a growing crisis: OEM cylinder head shortages, long lead times and frequent thermal cracking failures in high-temperature, heavy-load operating environments. To address these pain points, we are excited to announce the launch of our new dedicated custom production line for 4V21 and 4D37 cylinder heads, with the first batch of 120 units successfully shipped to Indonesia and Saudi Arabia this month.

1. 4V21 & 4D37 Engine Overview: Power & Application

Both engines are 3.9L inline-four direct-injection diesels, but represent different generations of Mitsubishi’s engineering philosophy:

Core Technical Parameters Comparison

Key Cylinder Head Design Challenges

• 4V21: Higher torque output and stricter emission standards increase thermal load, making the exhaust valve bridge area prone to thermal fatigue cracking after 150,000–200,000 km of heavy use.
• 4D37: Older design with thinner cooling passages; OEM aluminum heads suffer from warping and corrosion in regions with poor coolant quality.
• Both engines require precise combustion chamber volume control to maintain factory compression ratio and avoid engine knock.

2. Market Pain Points & Our Custom Solution

Traditional replacement options for 4V21 and 4D37 cylinder heads fail to address the root causes of failure:

Common Market Problems

• OEM Shortages: Mitsubishi has phased out production of 4D37 heads, and 4V21 OEM lead times exceed 3–6 months in most regions.
• Substandard Aftermarket Parts: Low-quality cast iron heads use recycled material, leading to premature cracking and coolant leakage.
• One-Size-Fits-All Design: Generic heads do not account for regional operating conditions (e.g., 50°C ambient temperatures in the Middle East).
• No Customization: Cannot accommodate performance upgrades or modified engine configurations.

Our Custom Production Advantages

We have re-engineered the 4V21 and 4D37 cylinder heads from the ground up to solve these issues:

• Premium Material Upgrade: Use HT250 high-alloy cast iron (instead of standard grey cast iron) with added chromium and nickel for 30% better thermal fatigue resistance.
• Optimized Cooling System: Enlarged and re-routed coolant passages around the exhaust valve bridge, reducing operating temperature by 15–20°C.
• Precision Machining: 5-axis CNC machining ensures ±0.01mm tolerance for combustion chamber volume and flatness.
• Flexible Customization:
  • Adjustable combustion chamber depth (14–18mm) to match different piston configurations
  • Reinforced valve seats for high-sulfur fuel regions
  • Custom porting for performance upgrades
  • Support for small-batch orders (minimum 1 unit)
• Full Compatibility: Direct bolt-on replacement for OEM heads, no modifications required.

3. Production Process & Quality Control

Every 4V21 and 4D37 cylinder head undergoes a rigorous 12-step production and testing process to ensure OEM-equivalent or better quality:

1. Raw Material Inspection: Spectrometer analysis to verify alloy composition and material hardness.
2. Precision Casting: Resin sand casting process with controlled cooling to eliminate internal porosity.
3. Rough Machining: CNC milling of basic dimensions and bolt holes.
4. Heat Treatment: Normalizing and tempering to relieve internal stress and improve structural integrity.
5. Finish Machining: 5-axis CNC machining of combustion chambers, valve seats and coolant passages.
6. Valve Seat & Guide Installation: Press-fit installation with interference fit for optimal heat transfer.
7. Surface Grinding: Precision grinding to achieve ≤0.03mm flatness (better than OEM 0.05mm standard).
8. Hydraulic Pressure Test: 5bar water pressure test for 30 minutes to ensure no coolant leakage.
9. Combustion Chamber Volume Measurement: 100% individual testing to guarantee compression ratio accuracy.
10. Dimensional Inspection: CMM measurement of all critical dimensions.
11. Cleaning & Packaging: Ultrasonic cleaning and rust-proof packaging for long-distance shipping.
12. Final Quality Audit: Random sampling of 10% of each production batch for full performance testing.

4. Latest Shipment Highlights & Customer Success Stories

Case Study: Indonesian Fleet Operator

A large logistics company in Jakarta was experiencing 4V21 cylinder head failures every 120,000 km due to the city’s heavy traffic and high ambient temperatures. OEM replacements were unavailable for 4 months, causing significant downtime.

We supplied them with 30 custom 4V21 cylinder heads featuring: – High-alloy cast iron construction – Enlarged coolant passages – Reinforced exhaust valve seats

After 6 months of operation, none of the custom heads have shown any signs of cracking or overheating, and the fleet’s average uptime has increased by 22%.

5. Order & Shipment Process

Ordering custom 4V21 or 4D37 cylinder heads from us is simple and efficient:

1. Inquiry: Send us your engine model, OEM part number, or photos of your old cylinder head.
2. Quotation: We will provide a detailed quotation within 24 hours, including price, lead time and shipping options.
3. Confirmation: Confirm your order and make a 30% deposit.
4. Production: We start production and provide regular progress updates.
5. Inspection: Send you photos and test reports of the finished products for your approval.
6. Payment & Shipment: Balance payment before shipment. We offer sea freight, air freight and express delivery options.
7. After-Sales Support: Technical support and warranty service throughout the product lifecycle.

6. Why Choose Us as Your 4V21 & 4D37 Cylinder Head Supplier?

• Specialized Expertise: 15+ years of experience in diesel engine cylinder head manufacturing, focusing exclusively on Japanese commercial vehicle engines.
• Customization Capability: The only supplier in China offering fully customizable 4V21 and 4D37 cylinder heads for regional operating conditions.
• Fast Lead Times: 15–25 days for custom orders, compared to 3–6 months for OEM parts.
• Competitive Pricing: 30–40% lower than OEM prices without compromising quality.
• Global Logistics Support: Established shipping routes to over 50 countries, with door-to-door delivery available in most regions.
• Technical Support: Our team of diesel engine engineers provides free technical consultation and installation guidance.

Conclusion

The launch of our dedicated 4V21 and 4D37 custom production line marks a significant milestone in solving the global shortage and quality issues for these critical engine components. Whether you are a fleet operator looking to reduce downtime, an engine rebuilder seeking reliable replacement parts, or a distributor wanting to expand your product range, we have the solution for you.

All our custom cylinder heads are engineered to outperform OEM parts in the most demanding operating environments, backed by our industry-leading warranty and fast global shipping.
