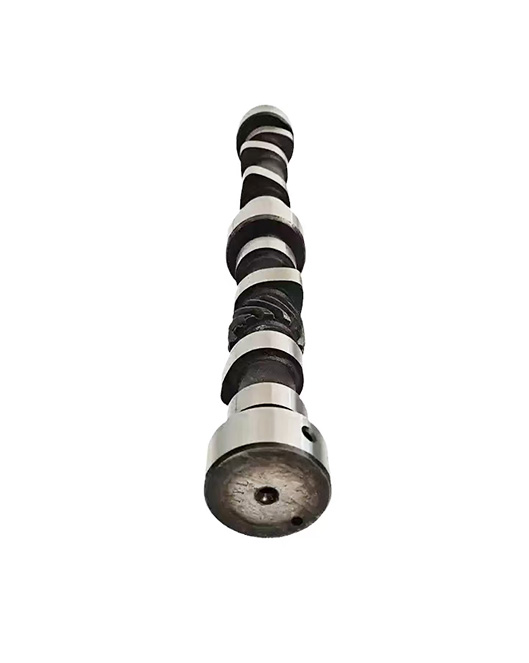

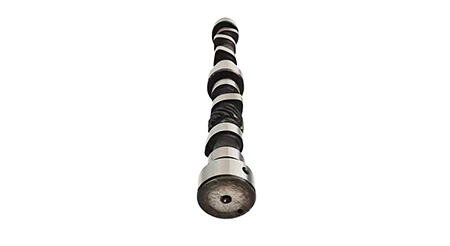

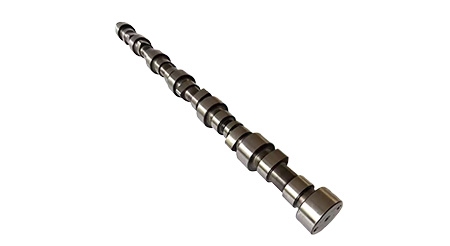

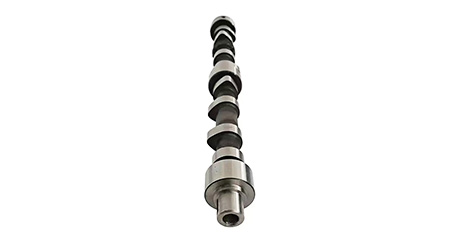

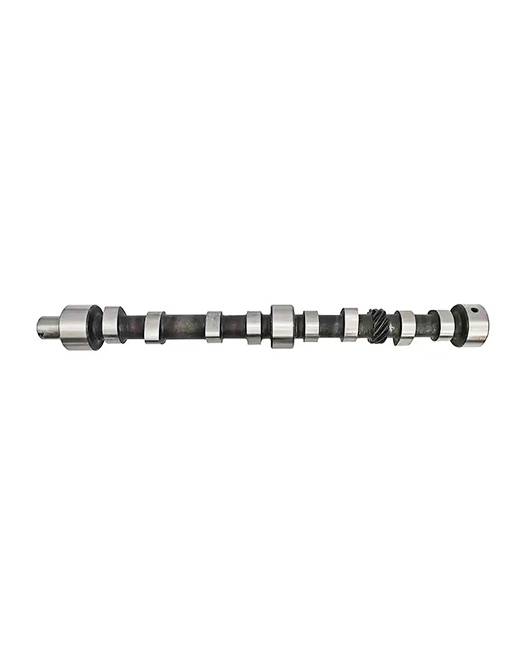

Isuzu Camshaft
Compatible with mainstream Isuzu engines such as 4JJ1 and 4KH1, it covers core models of commercial vehicles and pickup trucks. The original factory-level precision machining ensures that the cam profile error is within 0.02mm, ensuring accurate valve timing. The surface is treated with chrome plating, which improves wear resistance by 40% compared with ordinary camshafts, and can withstand the high-load operation of commercial vehicles. The optimized cam base circle design reduces valve clearance variation, avoiding valve leakage and ensuring stable engine performance.
Product Description
- The Isuzu camshaft is suitable for light trucks (ELF N Series), heavy-duty trucks (GIGA C Series), and excavators (EX200-5), and is compatible with engines including 4HK1-TC 3.0T and 6UZ1-TC 7.8T. It is made of high-strength alloy cast iron (containing molybdenum and chromium elements), with key dimensions meeting IT6 grade. The cam lift tolerance is ≤±0.004mm, the journal roundness is ≤0.003mm, and the surface hardness is ≥HRC50.
Product Advantages
It has undergone high-frequency quenching treatment (hardened layer depth: 0.9-1.3mm) and heavy-load durability testing (2200 hours of full-load operation without abnormal wear), featuring strong resistance to heavy loads and fatigue. It achieves precise adaptation in line with OE standards, requiring no secondary adjustment during installation. Compatible with multiple types of Isuzu commercial vehicles/engineering equipment, it reduces the maintenance frequency and cost of the engine's valve train system.
Product Parameter
|
Item |
Details |
|
Brand |
Isuzu (OEM Equivalent, adhering to Isuzu's rigorous quality standards for engine valve train core components in commercial vehicles and engineering equipment, specifically designed for light trucks (ELF N Series), heavy-duty trucks (GIGA C Series), and excavators (EX200-5), compatible with 4HK1-TC 3.0T and 6UZ1-TC 7.8T engines) |
|
After-Sales Service |
12-month warranty period; a professional technical team offers timely online/offline consultation on installation guidance for commercial vehicle/engineering equipment engines, maintenance precautions for valve train systems under heavy-load conditions, and fault diagnosis of Isuzu camshafts |
|
OE Support |
Fully complies with Isuzu's OE technical specifications and dimensional standards. It can directly replace the original camshaft of target commercial vehicles/engineering equipment without additional modification, ensuring seamless matching with other valve train components (such as valve lifters, timing chains) and maintaining the original engine's heavy-load operation stability, valve timing accuracy, and long service life |
|
Minimum Order Quantity (MOQ) |
50 units; tiered bulk discount policies apply: 6% discount for orders of 100–199 units, 9% discount for orders of 200+ units. For long-term cooperative customers (e.g., commercial vehicle fleet operators, engineering equipment maintenance companies) or large-volume procurement (500+ units), additional discount negotiations and priority delivery services are available |
|
Customization Support |
Accepts customization requests based on regional working conditions and customer needs, including: 1) Material optimization (e.g., enhanced wear-resistant alloy cast iron for dusty construction site excavators, corrosion-resistant treatment for coastal area commercial trucks); 2) Marking customization (laser-engraved customer brand logos, batch numbers, or equipment VIN matching codes for easy inventory management); 3) Packaging customization (heavy-duty moisture-proof, anti-rust, and shock-absorbing metal crates for long-distance sea/land transportation of engineering equipment parts, compact and portable packaging for light truck parts air freight) – all customizations must meet Isuzu's quality control standards and pass heavy-load durability and wear resistance verification |
